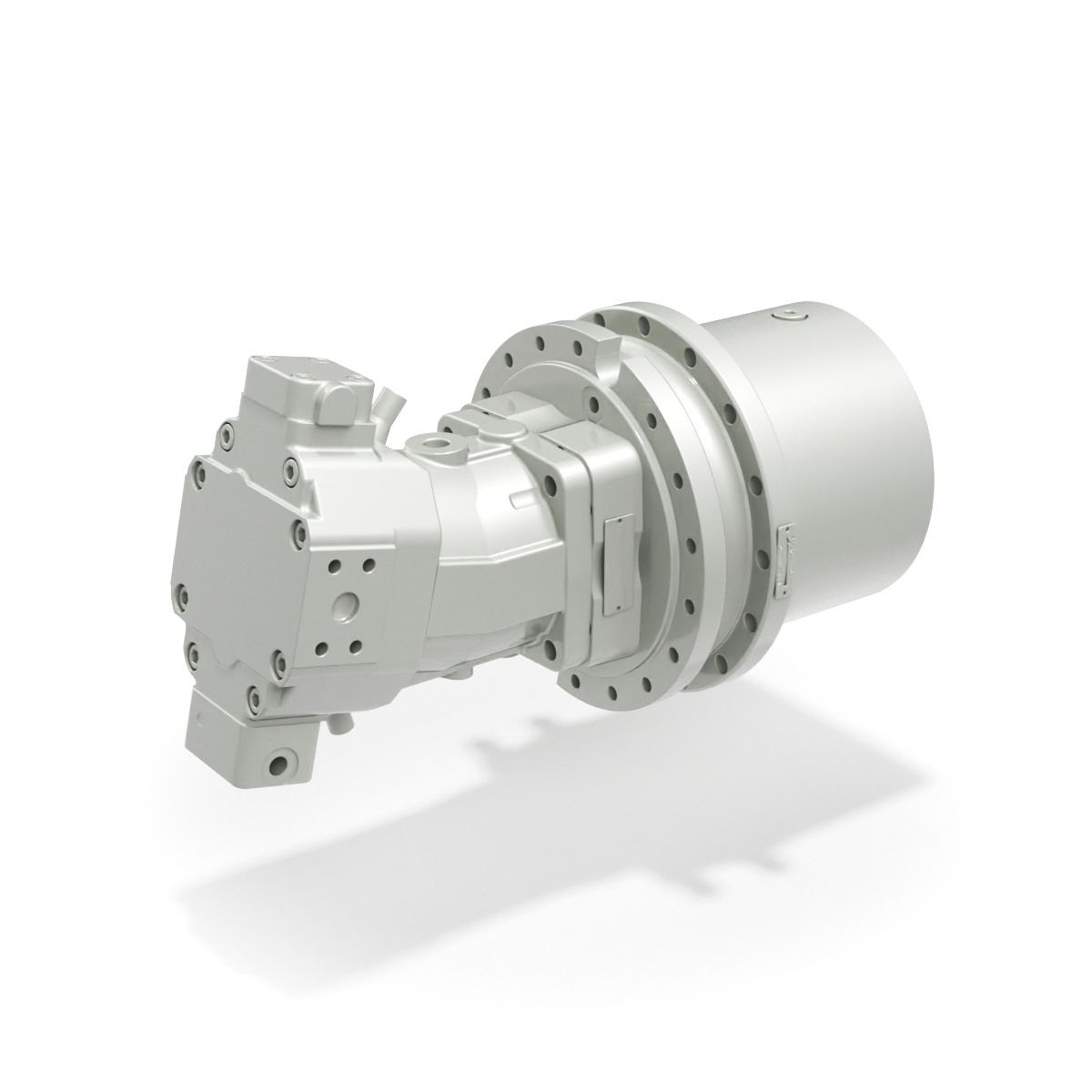

The units of the 800 series are specifically designed for winch applications, and can be easily accommodated within the drum itself. Available in various gear ratios, units feature heavy duty bearings and an optional failsafe parking or emergency multidisc brake.

	Type	Torque Nm
	805	5.000
	806	10.000
	810	17.500
	811	27.000
	813	42.000

Type	Max line rope Nm
805	35.000
806	50.000
810	85.000
811	120.000
813	170.000

Torque Range
5.000 Nm ... 42.000 Nm

Line rope range
35.000 N to 170.000 N

Gear Ratios
21 ... 108

Key Features
Rotating housing flange
Rugged construction
High torque capacity
High load capacity
Freewheel for anti run-back device, as an optional.

Applicable hydraulic motors
Flanged axial piston motors
Orbit motors

Brake
Hydraulically released parking brake on request
