Bonfiglioli's
300M Series is an outstanding
solution for all heavy-duty
applications where compactness
is not an option. Bonfiglioli's
expertise in planetary
technology ensures high-quality
product design and manufacturing
procedures. The 300 Series
operates without unwanted
downtime even in the harshest
environments. This planetary
gearbox achieves top-class
flexibility thanks to several
outputs, as well as input
configurations available for all
20 sizes.
Key benefits - High torque density
- Extreme speed reduction and high output torque - Low maintenance
cost - Extremely customizable - High customization level -
Flexibility - ATEX per explosive atmosphere 2G/2D
Main options In line/right angle version
Independent cooling unit Patented integrated cooling solution
Taconite seals ATEX certification for explosive environments

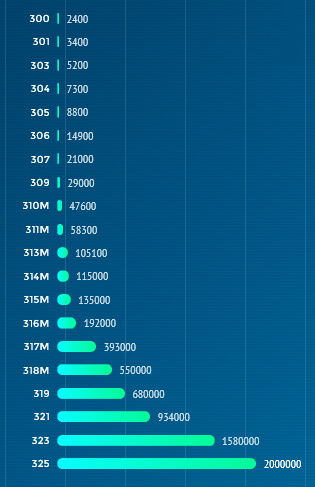

Torque range 1,250...1,286,700 Nm Gear ratios 3.4 ... 2,916
Certifications Certificate of compliance
Inspection certificate ATEX Brake options Negative multi-disk brake Output Foot or Flange mounted Splinted shaft (solid, heavy duty,
hollow, hollow with axial blockage device) Solid keyed shaft (solid,
heavy duty, stirrer/mixer version) Motors
Input with solid shaft Input with e-motor coupling: - M,
ME, MX [compact asynchronous] - BN, BE, BX [IEC asynchronous] -
BSR [IEC reluctance] - BS [IEC single phase]
Motor options Thermistors and thermostat sensors
Independent forced cooling Incremental, sin/cos absolute
single/multi-turn encoders Tropicalization Anti-condensate
heaters ,Backstop
INDUSTRIAL GEARS
