Integrated design will result into the best possible product combination
Extreme compactness, lightweight, efficiency and smooth operation are the key features of the

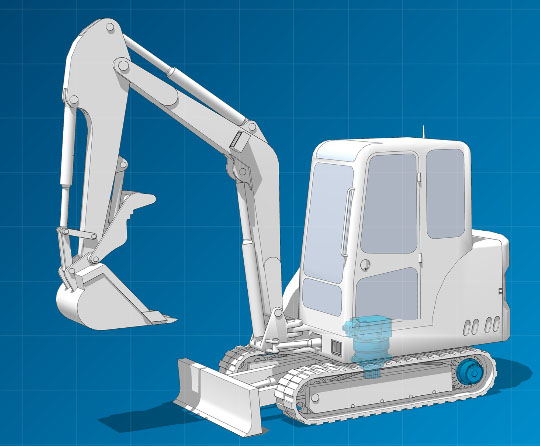

700CK series track drives, powered by integrated axial piston hydraulic motors, developed in cooperation with KAYABA. Available for machines in the 1,5 to 45 ton class range.
Torque Range 1.200 ... 180.000 Nm
Excavator weight 1,5 up 70 ton
Gear Ratios 30 ... 211
Key Features Rotating output flange with large PCD suitable
for sprocket
Rugged design
High torque capacity
High load capacity
Mechanical lifetime seals
Compact design
Hydraulic motors KAYABA hydraulic motors, fixed and dual
displacement,
complete with counterbalance valve.
Motor options Pressure relief valves, shockless type
Anticavitation valve
Brake
Hydraulically released failsafe parking brake directly
operated through the motor
