Cooling Fans > UltraFlo > T12E
| T12E Series |  |
| Dimension Drawing |
| Free-Running Model* |
Air Flow (CFM) |
Max. Static Pressure (inwg) |
Nominal Voltage (V) |
Voltage Range (V) |
Current (A) |
Input Power (W) |
Sound Level | Bearing | Operating Temp. Min/Max (°C) |
|
| Pressure (dBA) |
NPEL (IPC- 9591) |
|||||||||

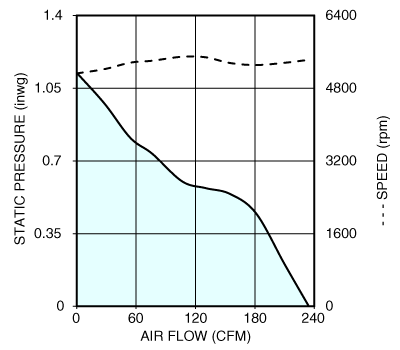

| T12E48BGM7-51 | 235 | 1.12 | 48 | 30-60 | 0.82 | 39.4 | 63.0 | — | Ball | -10/+70 |

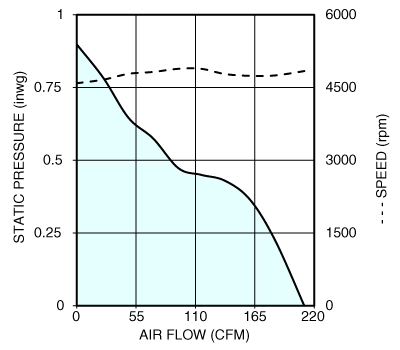

| T12E48BHM7-51 | 210 | 0.90 | 48 | 30-60 | 0.59 | 28.3 | 60.3 | — | Ball | -10/+70 |
| * Monitor and control options, designated by the last characters of the model names, are decribed here. | ||||||||||
T12E is also available as a series of feedback-governed, speed-stable fans. To see descriptions of those alternative models, click here.
